Vane pumps fixed displacement
Simple to cartridge S 45 V / S 45 VQ
Pumps LMC series 45, are of type to vanes balanced construction, fixed displacement, internal drainage to replaceable cartridge of high performance; quieter in the series with normal lateral surfaces and more capacity of pressure and speed in series VQ.

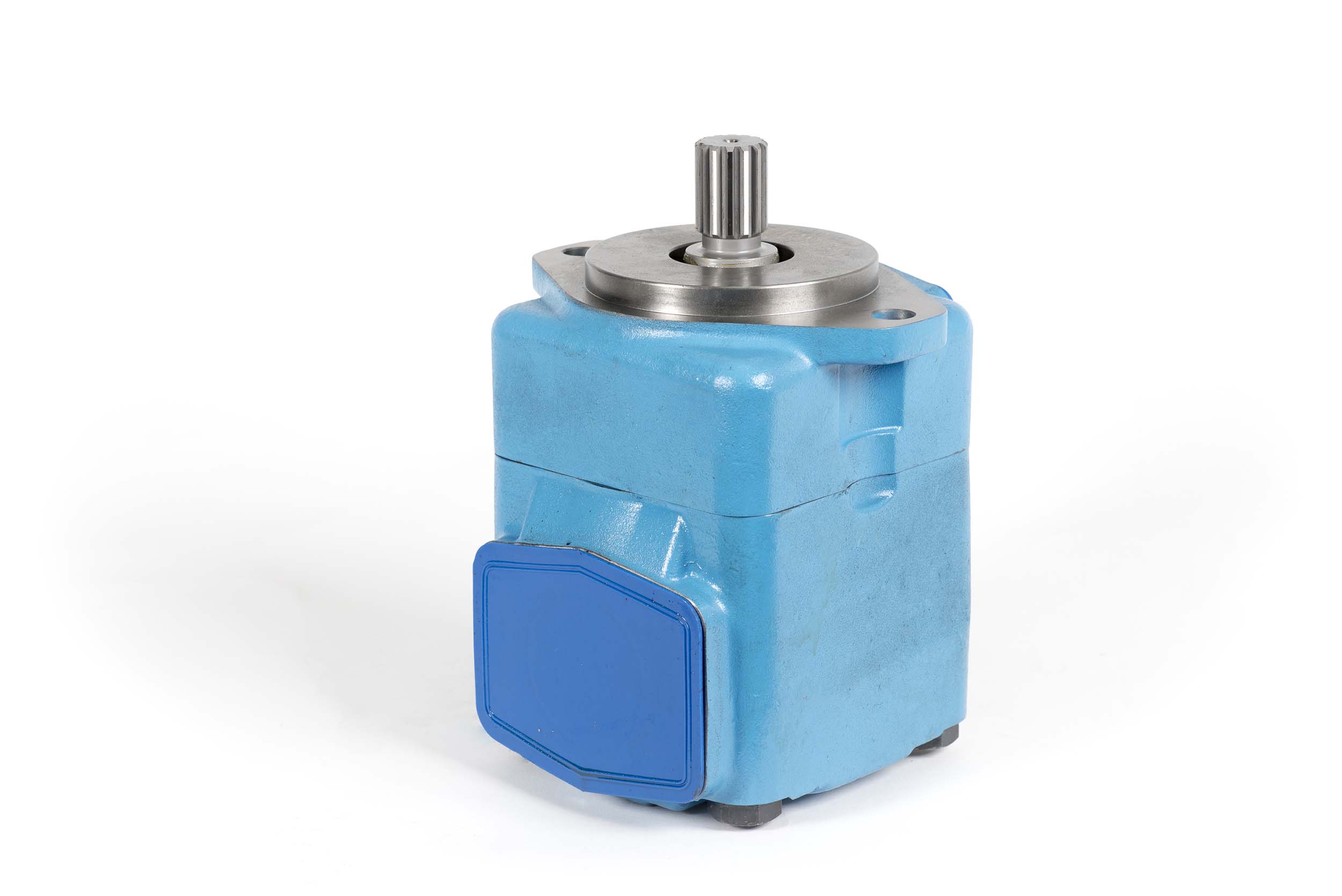

Product available for domestic and imported manufacturing.

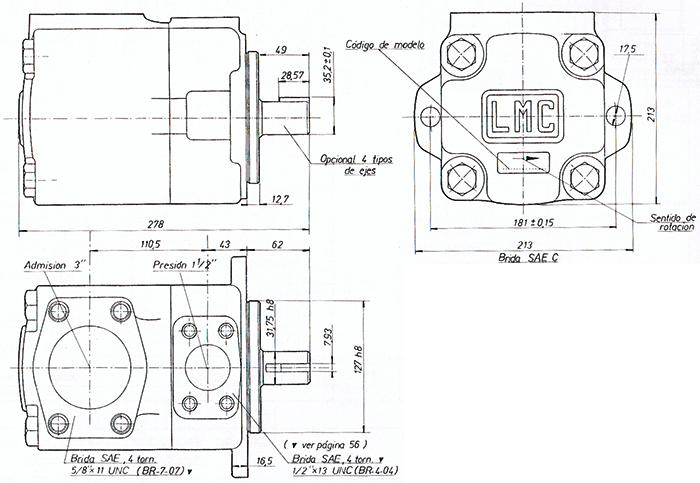

Data

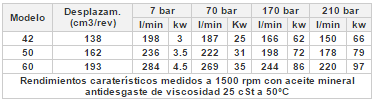

Performance
Connect of the pump
Is recommendable connects direct coaxial and flexible between motor and pump. If an indirect control imposes radial loads and/or axial consúltenos.
Relative position between admission and exit
If special position is required to specify it.
Installation and beginning
The installation position is indifferent. In the first putting in marha, if the pump has not been fattened must bleed the air relaxing a racor of the line of exit near the pump until the fluid flows or with a valve of air purge.

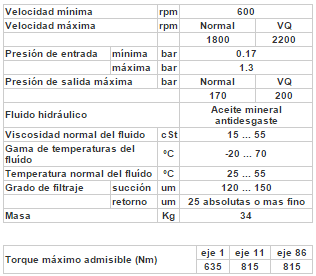

Technical data

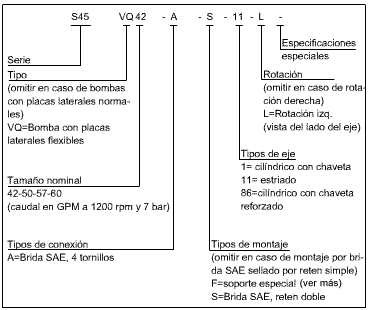

Model code

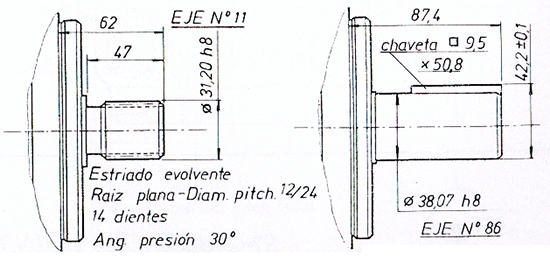

Shaft options
