Simple to cartridge

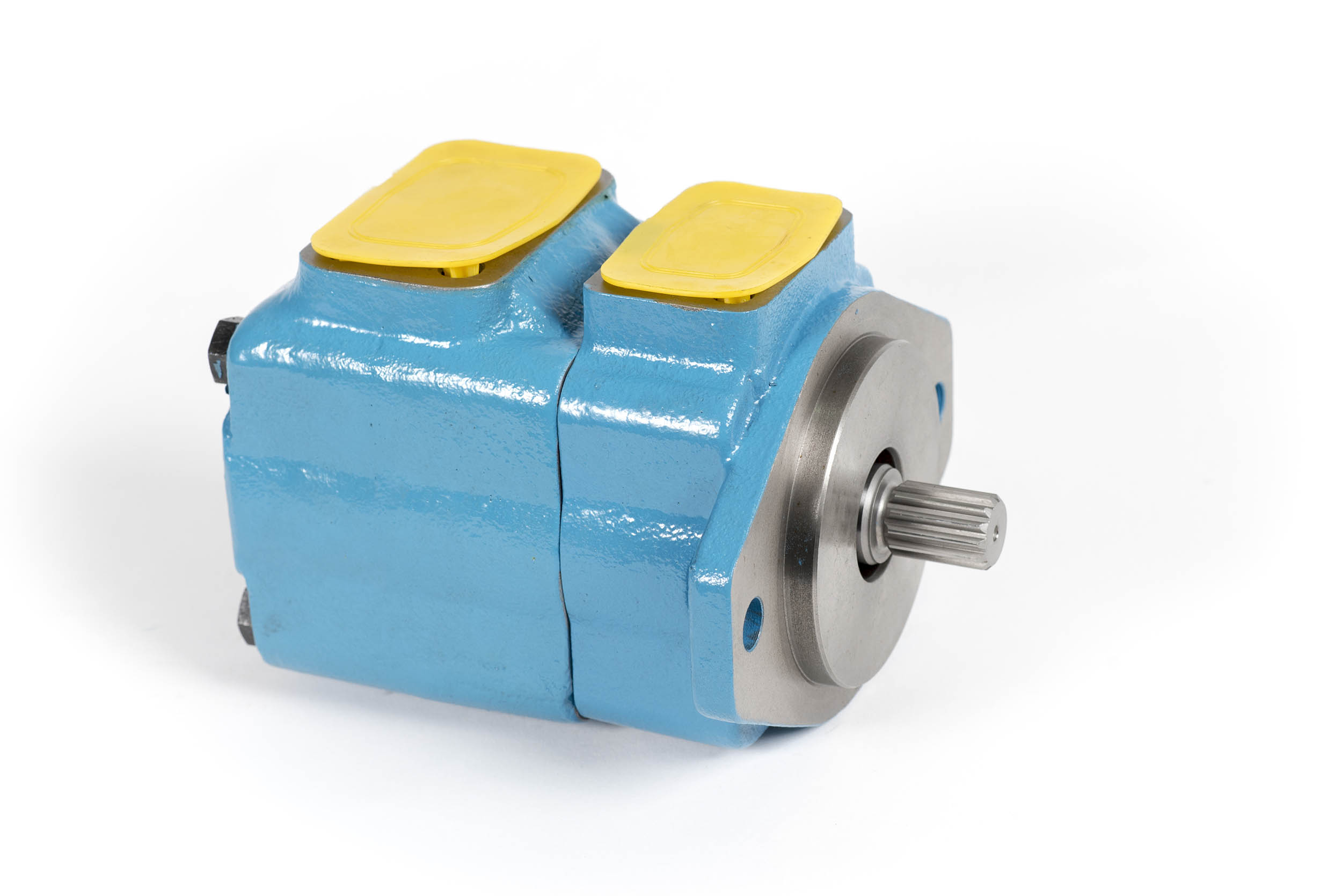

Simple to cartridge S 30 V / S 30 VQ
The LMC 30 series pumps are vane type, balanced construction, fixed displacement, internal drainage with high performance replaceable cartridge; quieter in the series with normal side surfaces and with greater pressure and speed capacity in the VQ series.
Product available for domestic and imported manufacturing.

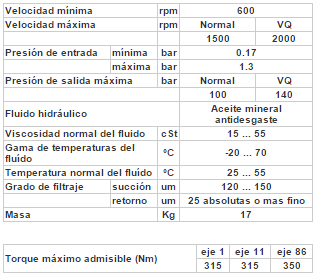

Technical data
Performance
Connect of the pump
Is recommendable connects direct coaxial and flexible between motor and pump. If an indirect control imposes radial loads and/or axial consúltenos.
Relativa position between admission and exit
If special position is required to specify it.
Installation and beginning
The installation position is indifferent. In the first beginning, if the pump has not been fattened must bleed the air relaxing a racor of the line of exit near the pump until the fluid flows or with a valve of air purge.

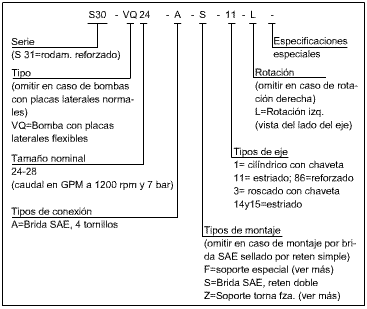

Model code
