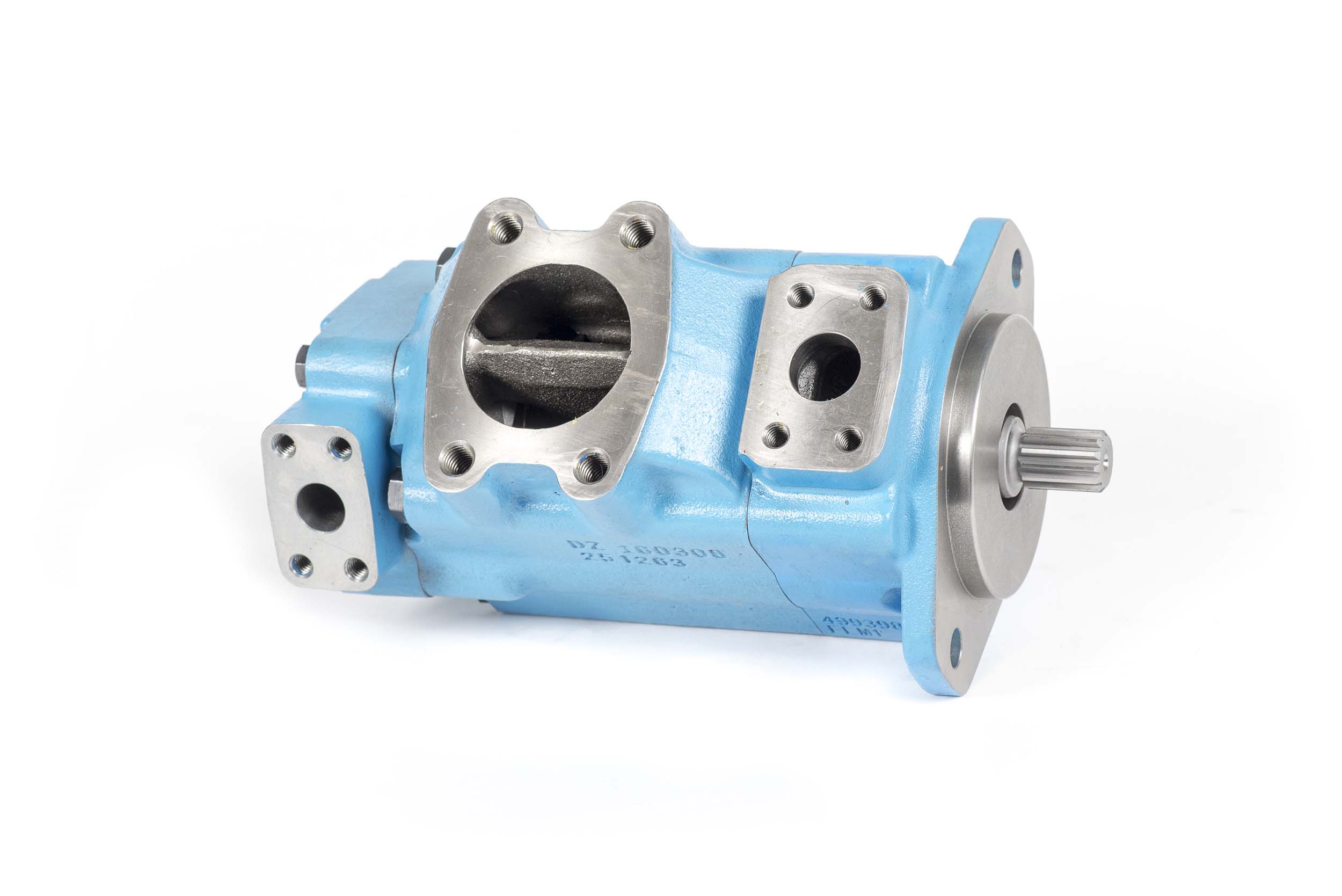

Doubles to cartridge S 25 20 V /S 25 20 VQ

Pumps LMC series 25 20, are of the type to vanes, balanced construction, fixed displacement, internal drainage to replaceable cartridge of high performance; quieter in the series with normal lateral surfaces and more capacity of pressure and Velocities, in series VQ.

Product available for domestic and imported manufacturing.

Datos

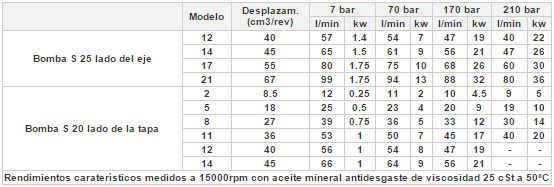

Performance




Connect of a pump.

Is recommendable connects direct, coaxial and flexible between motor and pump. If an indirect control imposes radial loads and/or axial contact us.

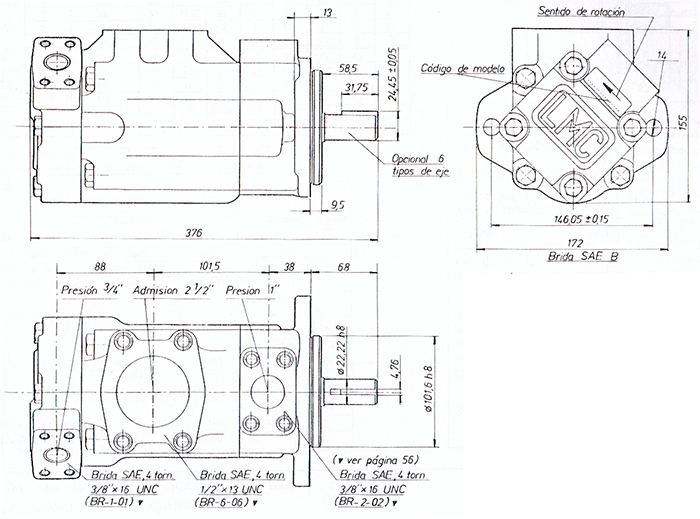

Relative position between admission and exit.

If special position is required to specify it.

Installation and beginning

The installation position is indifferent. In the first beginning, if the pump has not been fattened must bleed the air, relaxing a racor of the line of exit near the pump until the fluid flows or installing a valve of air purge.

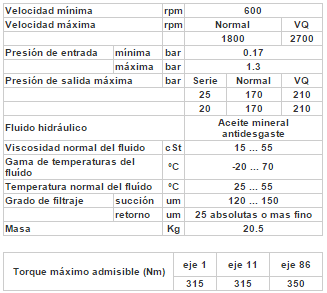

Technical data

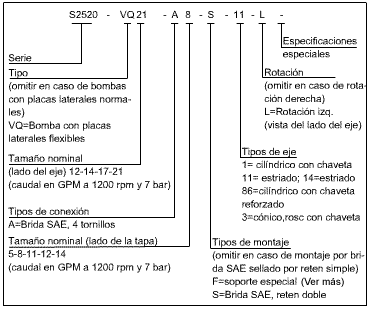

Model code

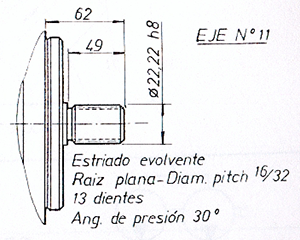

Shaft options
