Vane pumps fixed displacement

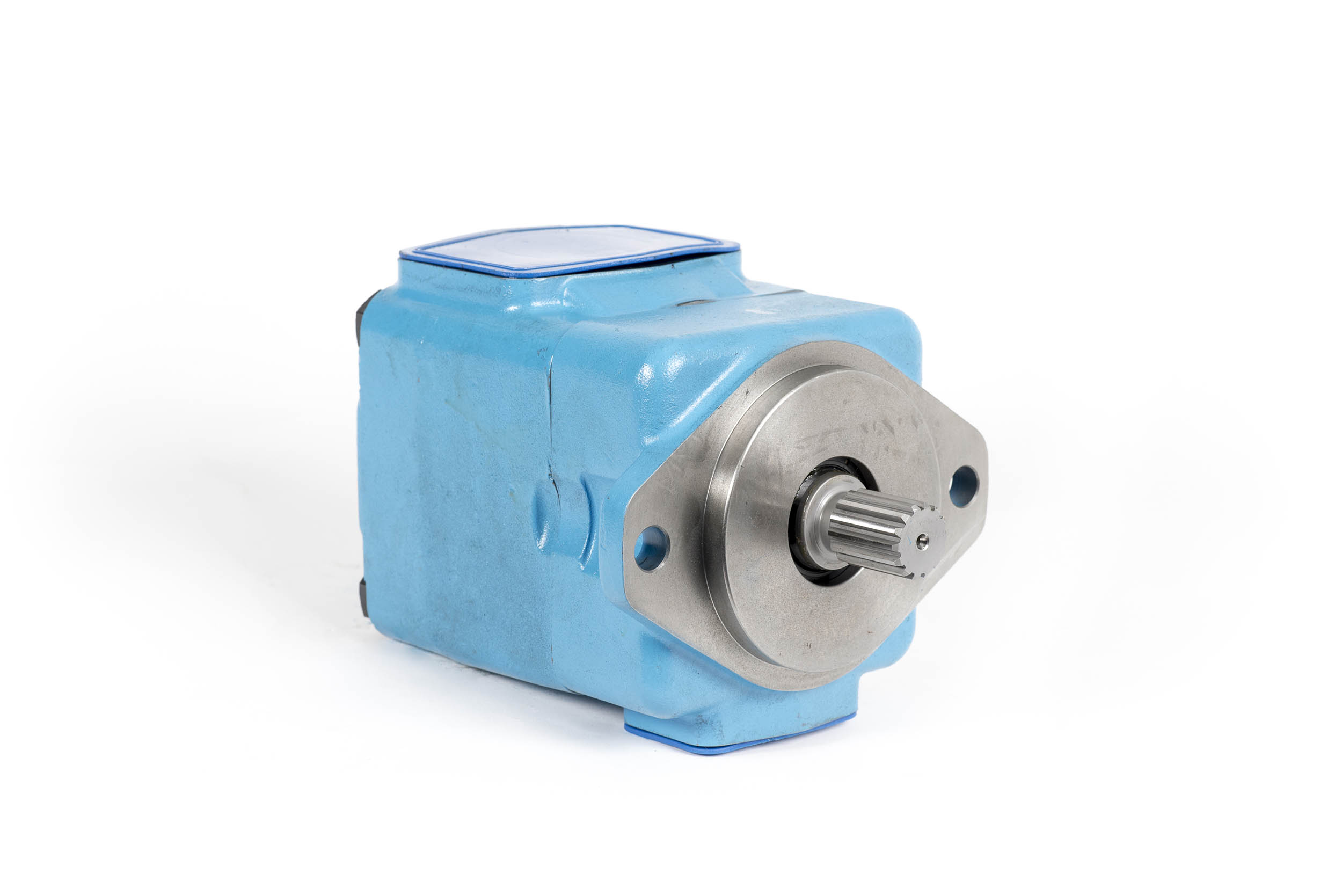

Simple to cartridge S 25 V / S 25 VQ
Pumps LMC series 25, are of type to vanes balanced construction, fixed displacement, internal drainage to replaceable cartridge of high performance; but quiet in the series with normal lateral surfaces and but capacity of pressure and speed, in series VQ.
Product available for domestic and imported manufacturing.
Data

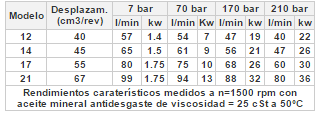

Performance
Connect of the pump.
Is recommendable connects direct coaxial and flexible between motor and pump. If an indirect control imposes radial loads and/or axial consúltenos.
Relativa position between admission and exit
If special position is required to specify it.
Installation and beginning
The installation position is indifferent. In the first beginning, if the pump has not been fattened must bleed the air relaxing a racor of the line of exit near the pump until the fluid flows or with a valve of air purge.

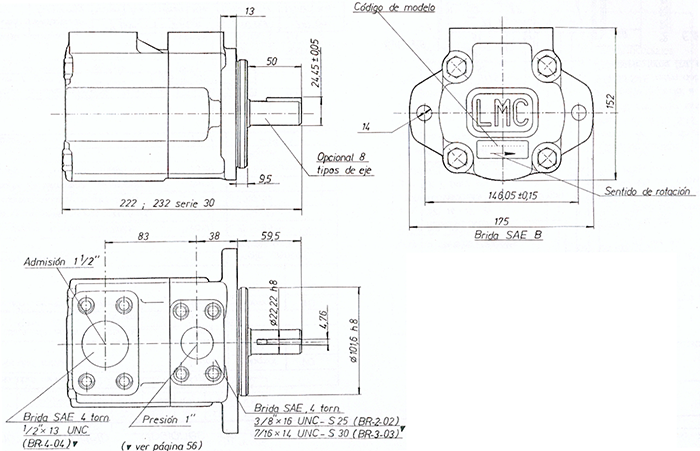

Technical data

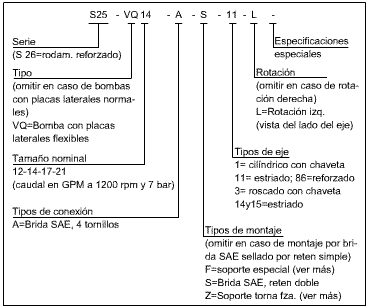

Model code

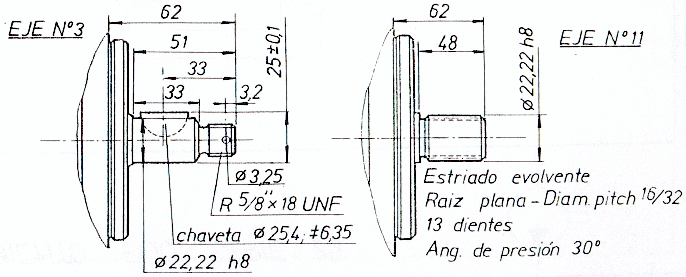

Shaft options
