Simples SVTM

LMC SVTM series pumps are vane type, hydraulically balanced construction, fixed displacement, internal drainage. They can be used with various types of fluids and with fixed or variable speed motors..

Product available for domestic and imported manufacturing.

Data

Model

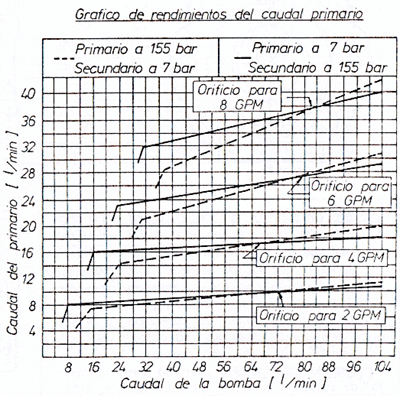

Performance




Connect of pump

Is recommendable connects direct coaxial and flexible between motor and pump. If an indirect control imposes radial loads and/or axial consult us.

Relative position between admission and exit

If special position is required to specify it.

Installation and beginning

The installation position is indifferent. In the first beginning, if the pump has not been fattened must bleed the air relaxing a racor of the line of exit near the pump until the fluid flows or with a valve of air purge.

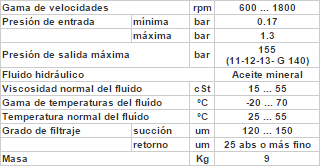

Technical data

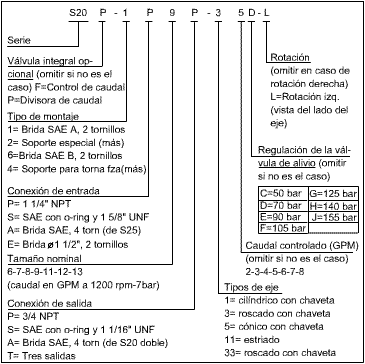

Model code

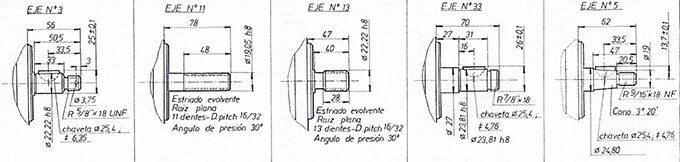

Shaft options
