Vane pumps fixed displacement

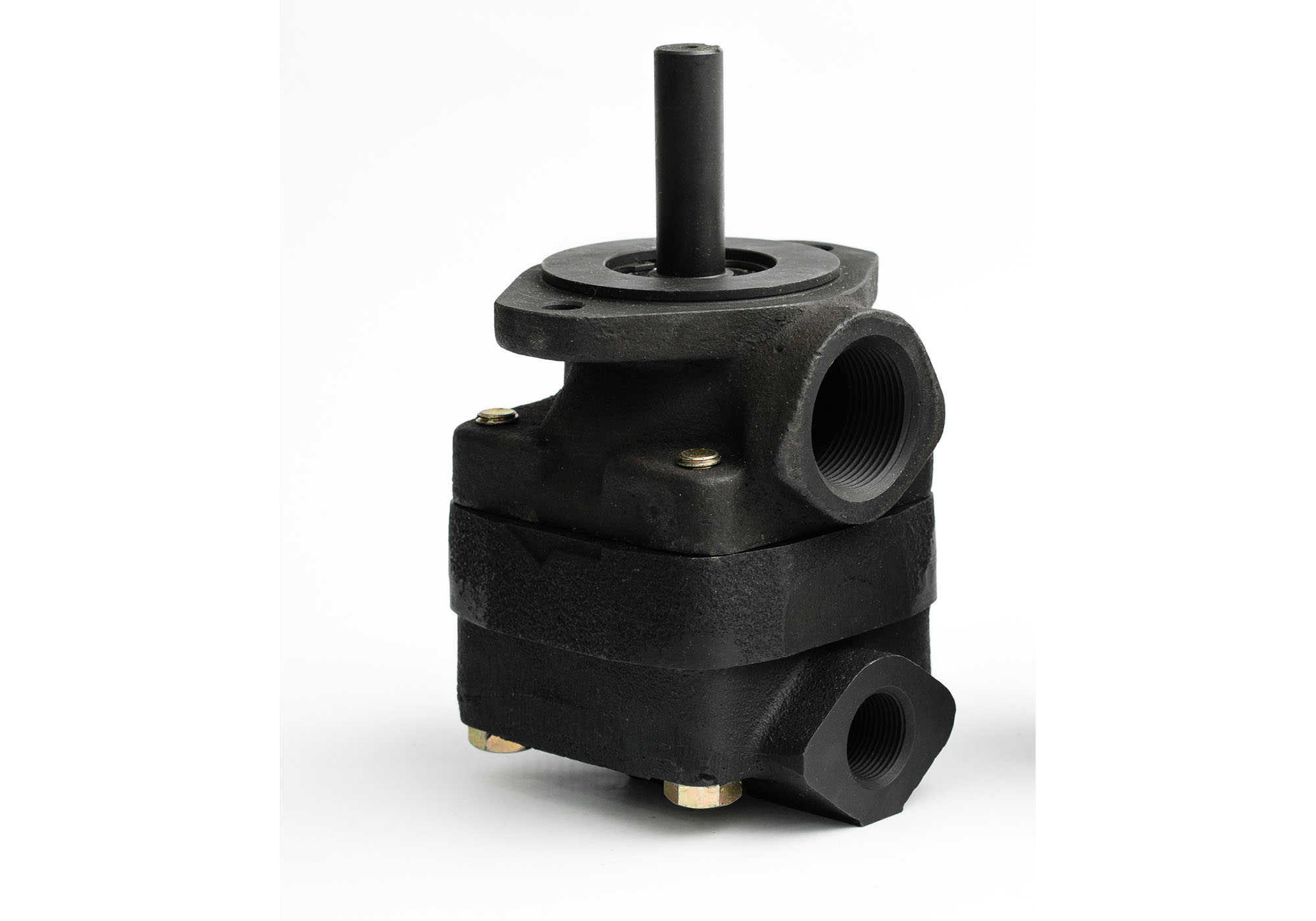

Simples S 20
Pumps LMC series 20, are of the type to vanes, construction balanced hydraulically, fixed displacement, internal drainage. They are possible to be used with several types of fluid and with speed motors it fixes or variable.

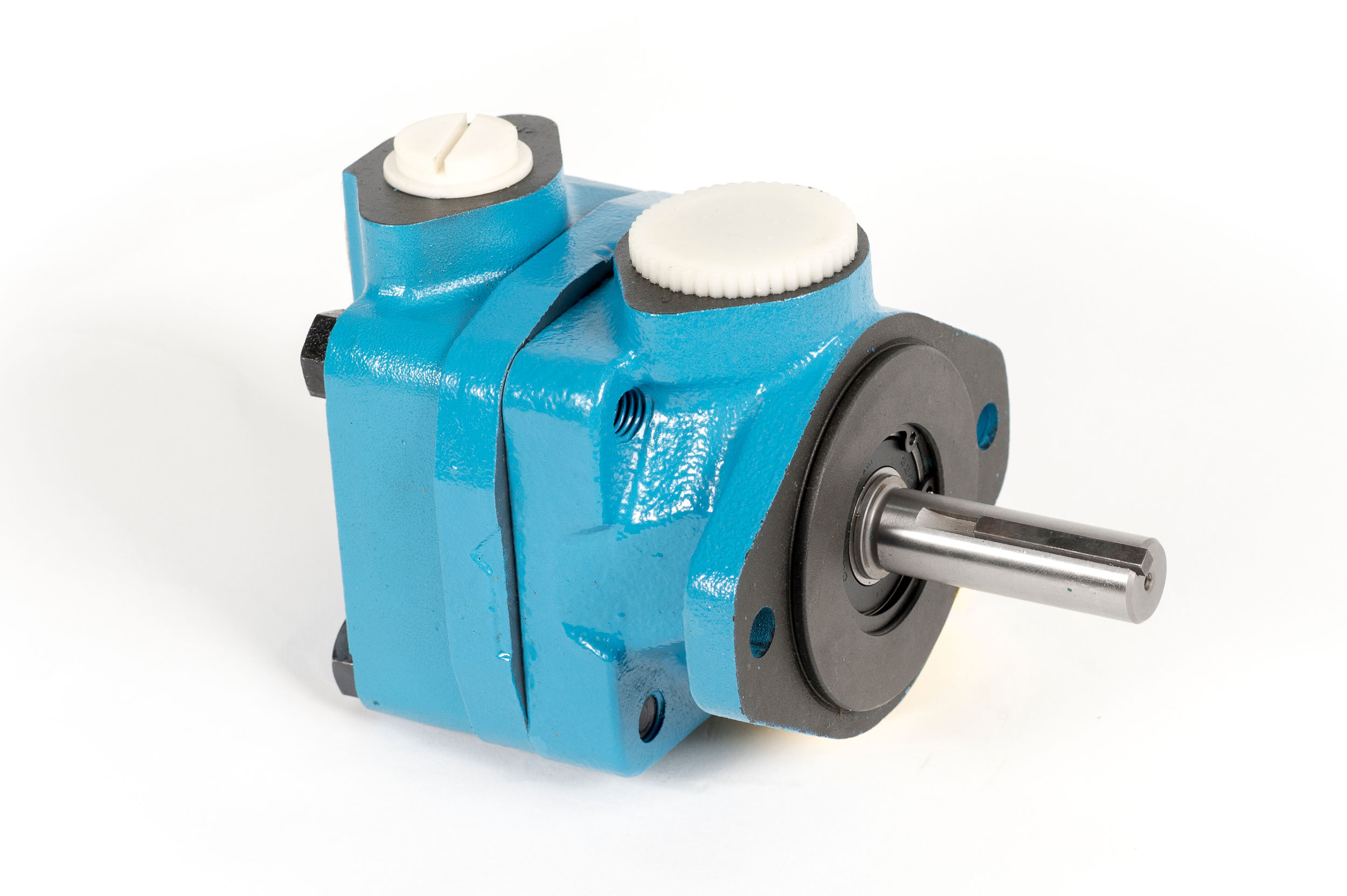

Product available for domestic and imported manufacturing.
Data
Models

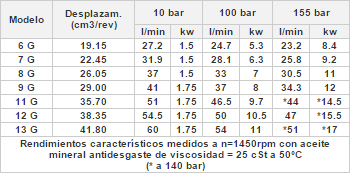

Performance
Connect of the pump
Is recommendable connects direct, coaxial and flexible between motor and pump. If an indirect control imposes radial loads and/or axial consult us.

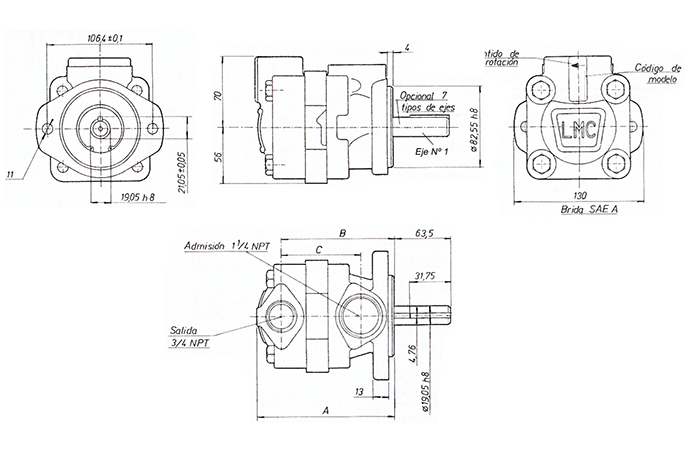

Relative position between admission and exit
If special position is required to specify it in the order.
Installation and start up the installation position is indifferent
In the first beginning, if the pump has not been fattened must bleed the air, relaxing a racor of the line of exit near the pump until the fluid flows or installing a valve of air purge. If it is required to use other consult us special fluids or additional information.

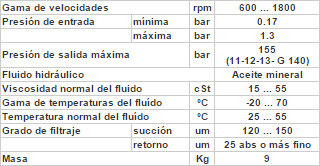

General data

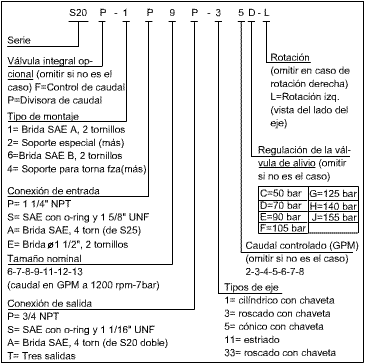

Model code

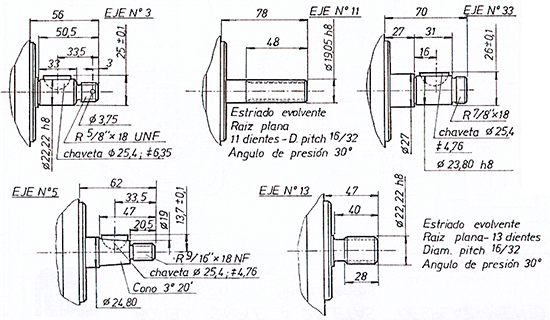

Shaft options
