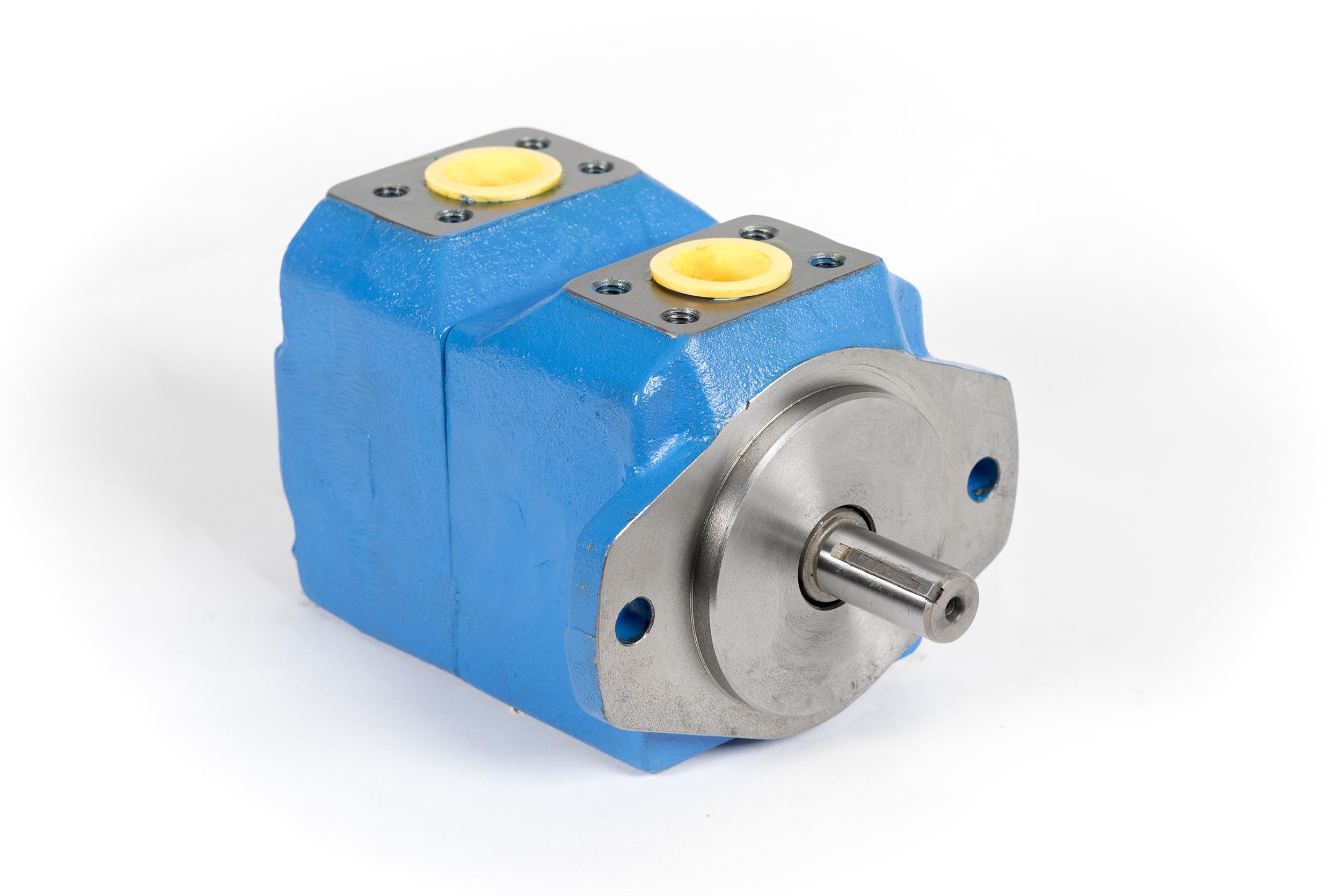

Hydraulic vane motors/fixed displacement

Motor LMC M25, is of the type to vanes of fixed, bidirectional displacement, balanced construction. The operation can be continuous or intermittent in both senses of rotation. When circuit this provided with protection by safety valve the motor can be used for reversible cycle.

Product available for domestic and imported manufacturing.

Data



Model




Rotation

Entrance of fluid by A: right
Entrance of fluid by B: Left.

Connect with the load.

The load does not have to be supported by the bearings of the motor and it connects recommendable between both is direct, coaxial and the flexible one.

Drainage

The connection is external, it does not have to be restricted and it must be connected to the deposit below the inner level of the possible fluid.

Velocidad míinima

Normalmente es 100 RPM, velocidades mas bajas son permisibles dependiendo del requerimiento del torque.

Minimum speed

Normally it is 400 RPM, speeds but low they are permissible depending on the requirement of torque.

Maxima pressure

to see table.

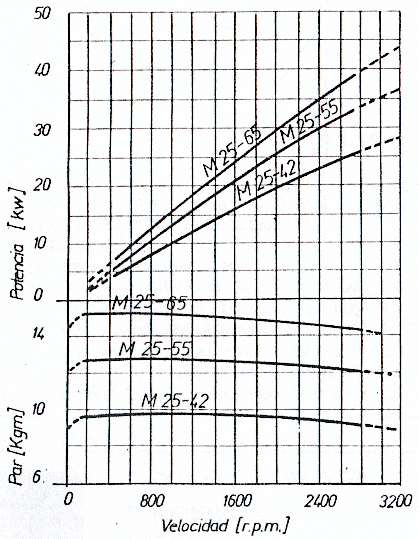

Torque-speed of exit

to see characteristics curves.

Torque of starting

65% (minimum) of torque to 400 RPM.

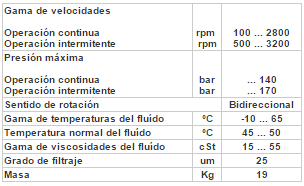

Technical data

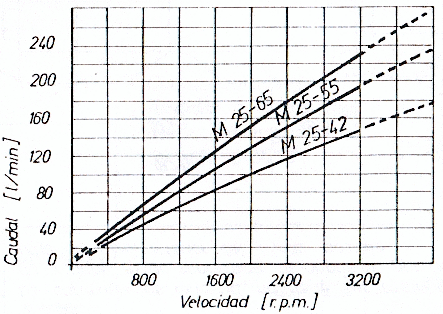

Curve

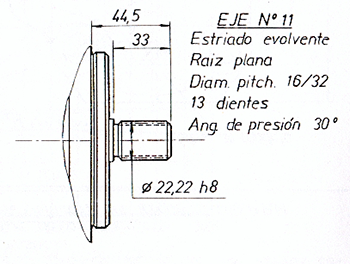

Shaft option

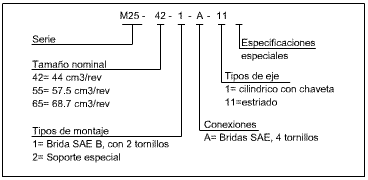

Model code
