Hydraulic vane motors fixed displacement
Hydraulic vane motors/fixed displacement

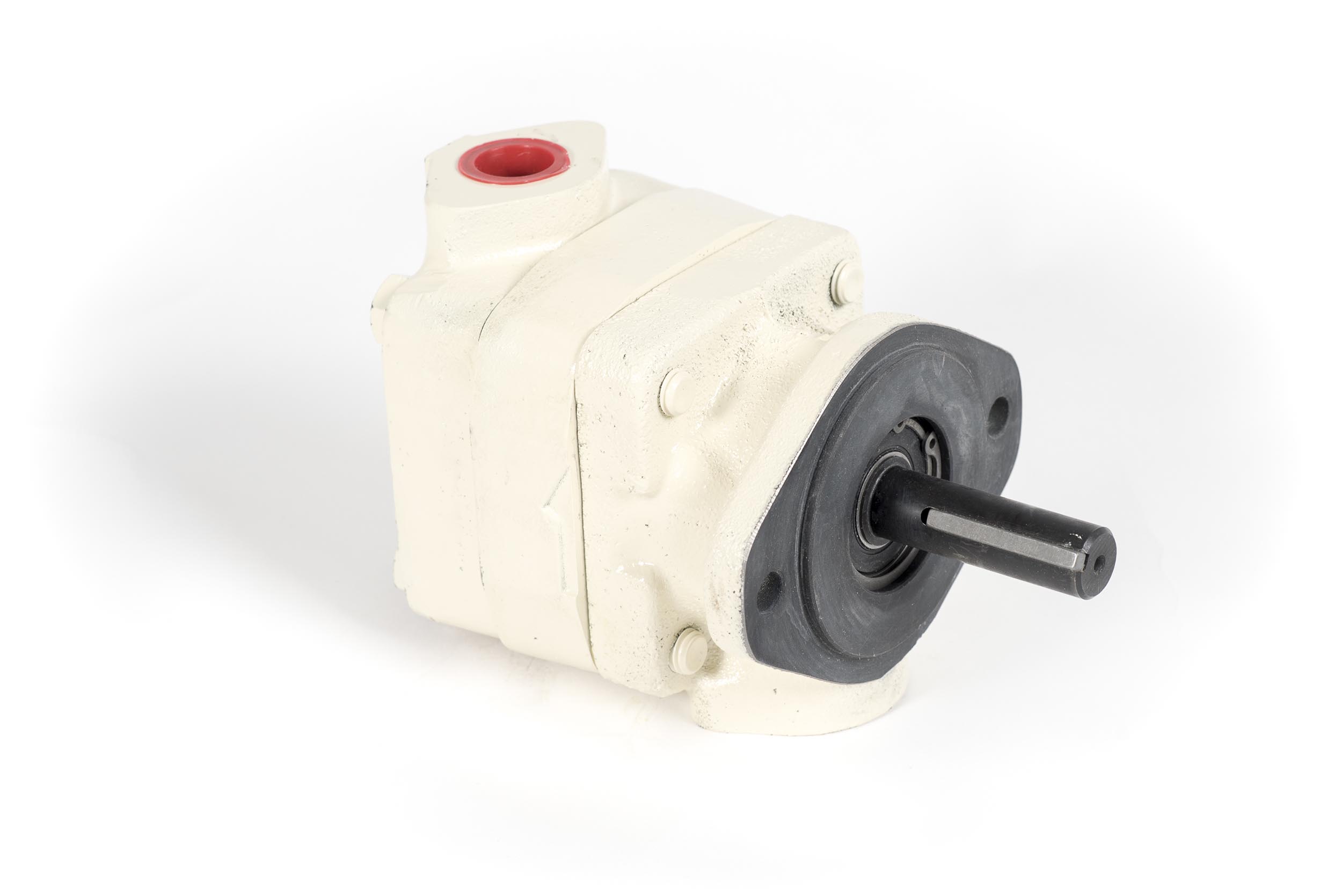

Motor LMC M200, is of the type to vanes of fixed, bidirectional displacement, balanced construction. The operation can be continuous or intermittent in both senses of rotation. When circuíto this provided with protection by safety valve the motor can be used for reversible cycle. Drainage is internal, there is no connection with the tank.
Product available for domestic and imported manufacturing.
Data
Model
Rotation
Entrance of fluid by A: right
Entrance of fluid by B: Left
Connect with the load.
The load does not have to be supported by the bearings of the motor and it connects recommendable between both is direct, coaxial and the flexible one.
Rotation sense
Motors are build for right rotation, if left rotation is required, specify it.
Installation
Installation position is different.
Minimum speed
Normally it is 100 RPM, speeds but low they are permissible depending on the requirement of torque.
Terminal velocity
to see table.
Maxima pressure
to see table.
Torque-speed of exit
to see characteristics curves.
Torque of starting
65% (minimum) of torque to 400 RPM.

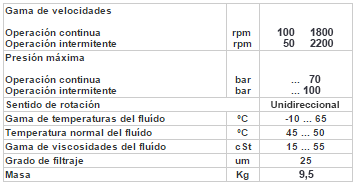

Technical data

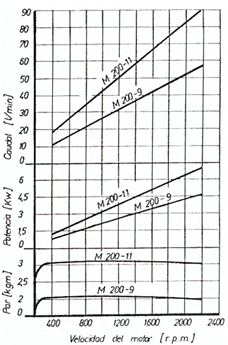

Curve

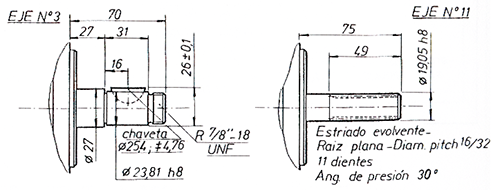

Shaft options

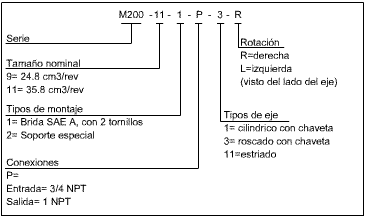

Model code
