Vane pumps variable displacement

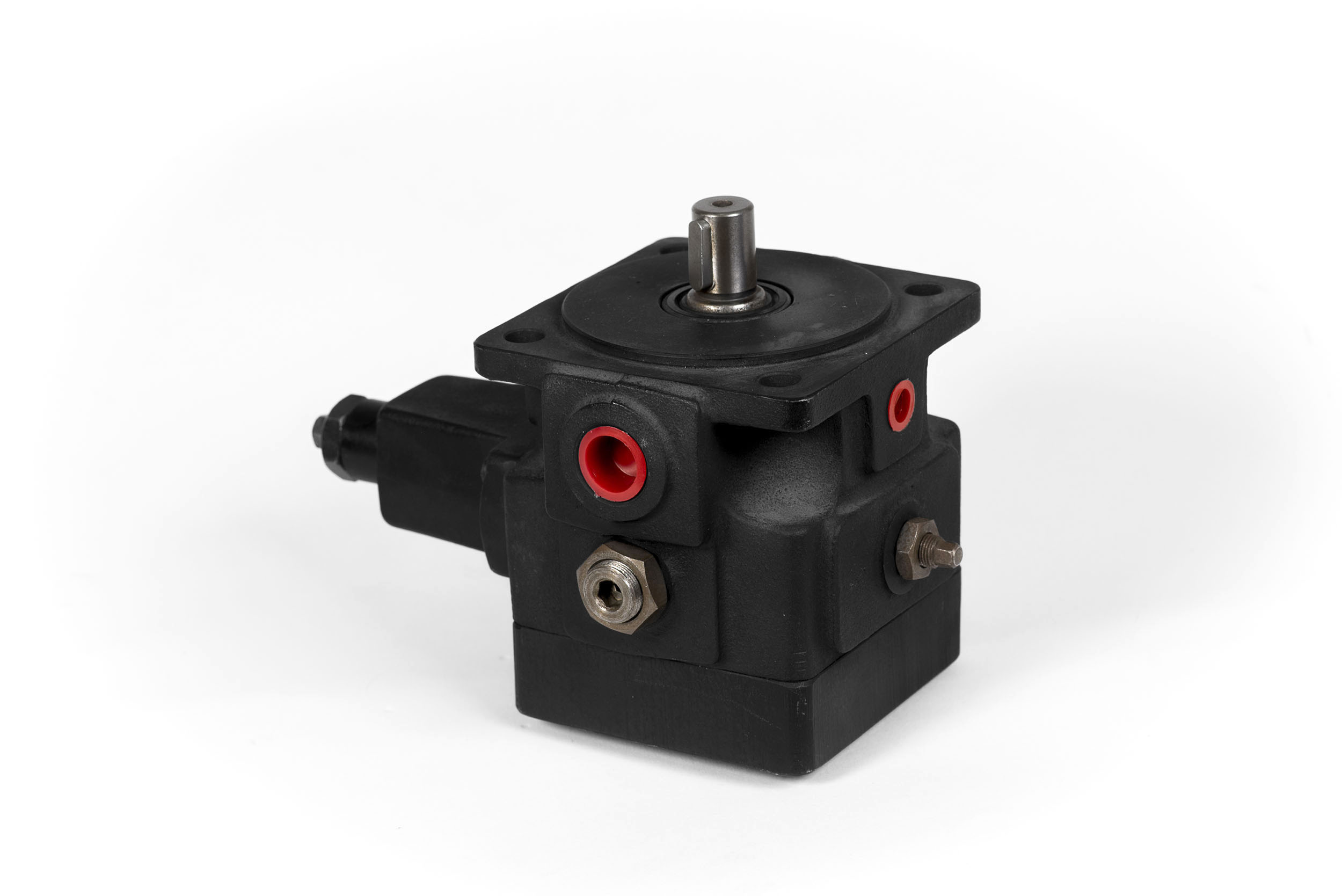

Vane Variable Simple /Simples Serie SQV3-19
This type of vane pumps of variable piston displacement has a reduced sonorous level and a great self-priming security on watch by. Its high duration is due to the hydrodynamic bearings and to special alloy the lateral bronze surfaces, which grants excellent characteristics to him of sliding. Its function is to generate a volume and to print single the necessary energy to him, reducing the losses of same and the heating of the fluid. In order to imitate the maximum volume previó a regulator.
Product available for domestic and imported manufacturing.
Data

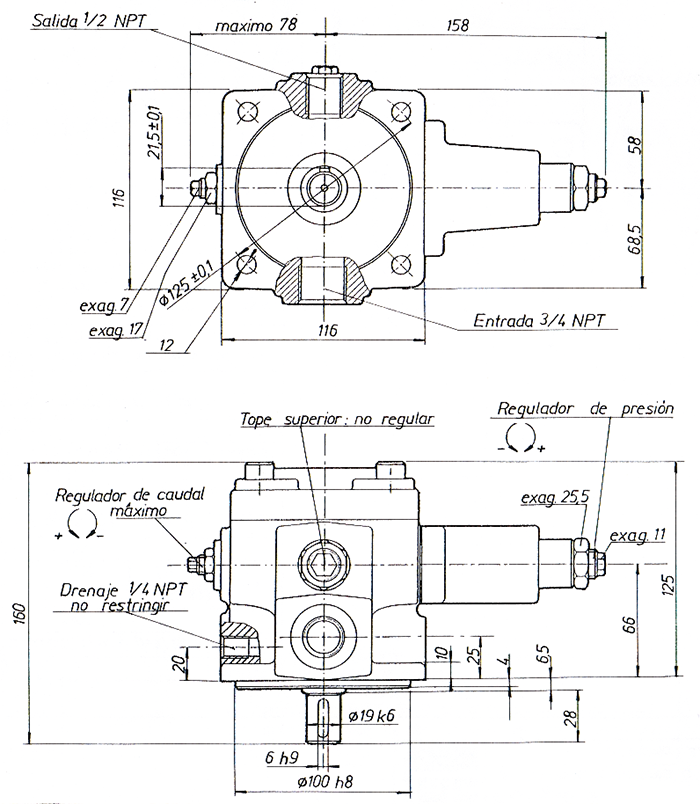

Installation/Regulation of the pressure
The ring stator is to circulate and is mantinido in its eccentric position by the regulation means, which graduate the Maxima pressure on watch in the system. This last one acts in the inner psita of the ring stator against the means of regulation and when this reaches the value graduated in the same one, the ring moves towards its position of trim and then the pump generates a volume almost null mantenidno the pressure. This way to the losses of energy and the heating of the fluid are reduced.

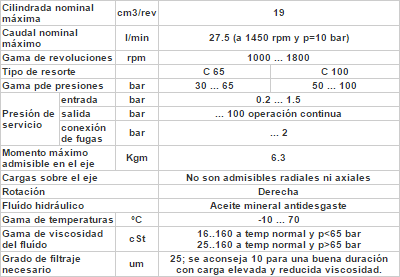

echnical data

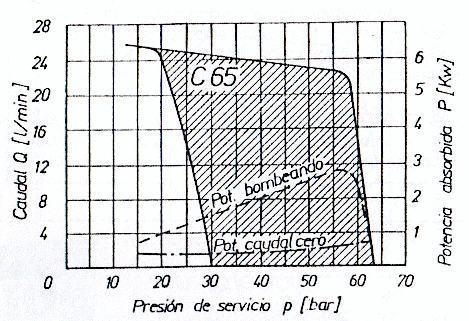

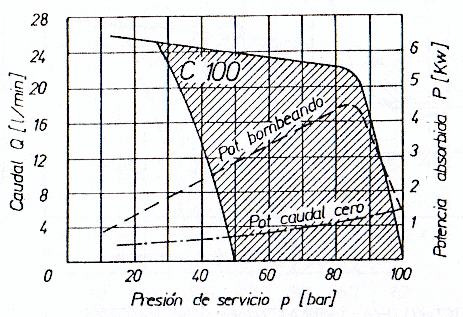

Curved Characteristics
